Options/Specifications
Options
■ Vacuum Measurement Unit
Use this unit for sensitive measurements of light elements. It requires space for installation of a rotary pump and switch box at the side or rear of the desk supporting the main unit.
■ Turret Unit
Turret for 12 samples. It permitscontinuous measurements of samples up to 32 mm in diameter. It improves throughput, especially for measurements in a vacuum or helium atmosphere.
■ Mylar Film
Sample-holding film (for heavy element analysis)
■ Helium Purge Unit
This unit is used for highly sensitive measurements of light elements in liquid samples. Does not include a helium cylinder or regulator.
(Option for EDX-7000)
■ Screening Analysis Kits
RoHS/ELV Screening Analysis Kit
- With check samples for five elements RoHS and Halogen Screening Analysis Kit
- With check samples for six elements RoHS, Halogen, and Antimony Screening Analysis Kit
- With check samples for seven elements
■ Polypropylene Film
Sample-holding film (for light element analysis)
■ Sample Cells
3571 General Open-End X-Cell (no lid)
(Outer diameter: 31.6 mm, volume: 10 mL) Polyethylene sample cell for liquid and powder samples.
3529 General X-Cell (with lid)
(Outer diameter: 32 mm, volume: 8 mL) For liquid samples. Equipped with a relief hole and liquid retainer in case of liquid expansion.
3577 Micro X-Cell
(Outer diameter: 31.6 mm, volume: 0.5 mL) For trace samples. Recommended for use with a collimator.
3561 Universal X-Cell
(Outer diameter: 31.6 mm, volume: 8 mL) For liquid and thin-film samples. Equipped with a relief hole and liquid retainer in case of liquid expansion. Equipped with a ring to tightly hold thin-film samples with film.
Specifications
| Measurement principle | X-ray fluorescence spectrometry |
| Measurement method | Energy dispersion |
| Target samples | Solids, liquids, powders |
| Measuring range | 11Na to 92U (EDX-7000) 6C to 92U (EDX-8000) |
| Sample size | W 300 × D 275 × approx.H 100 mm (excluding radiuses) |
| Maximum sample mass | 5kg (200g per sample when using turret, Gross mass 2.4kg) |
X-ray generator
| X-ray tube | Rh target |
| Voltage | 4 kV to 50 kV |
| Current | 1 μA to 1000 μA |
| Cooling method | Air-cooled (with fan) |
| Irradiated area | Automatic switching in four stages: 1, 3, 5, and 10 mm diameter |
| Primary filters | Five types (six, including the open position), automatic replacement |
Detector
| Type | Silicon drift detector (SDD) |
| Liquid nitrogen | Not required (electronic cooling) |
Sample chamber
| Measurement atmosphere | Air, vacuum*1, helium (He)*2 |
| Sample replacement* | 12-sample turret |
| Sample observations | Semiconductor camera |
Data processor
| Memory | 2 GB min. (32-bit), 4 GB min. (64-bit) |
| HDD | 250 GB min. |
| Optical drive | Super multi drive |
| OS | Windows 7 (32-bit/64-bit)*3 |
Software
| Qualitative analysis | Measurement/analysis software |
| Quantitative analysis | Calibration curve method, correction for coexistent elements, FP method, film FP method, background FP method |
| Matching software | Intensity/content |
| Utilities | Automatic calibration functions (energy calibration, FWHM calibration) |
| Instrument status monitoring function | |
| Analysis results tabulation function |
Installation
| Temperature | 10 °C to 30 °C (temperature fluctuation rate 2 °C/hour max., temperature fluctuation range: 10 °C max.) |
| Relative humidity | 40 % to 70 % (no condensation) |
| Power supply | 100 V AC ±10 %, 15 A earthed socket |
| Dimensions | W 460 × D 590 × H 360 mm |
| Weight | Approx. 45 kg |
*1 Option for EDX-7000/8000
*2 Option for EDX-7000
*3 Microsoft Office is not included.

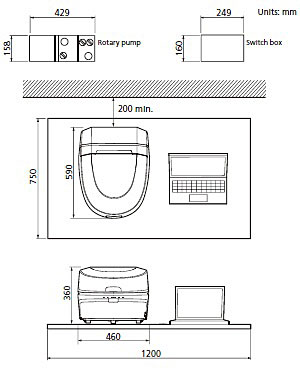

Installation Example
Vacuum measurement unit (optional) consists of a control switch box and rotary pump.
