Nexlock

Zero Dead Volume
Single Part
Reliable

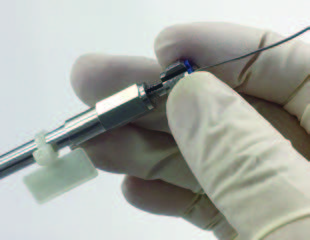

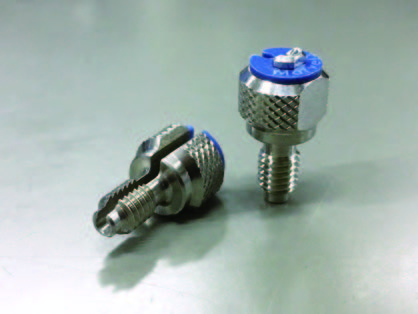

Nexlock is a re-usable finger-tight fitting that is easy to use, and provides excellent pressure capacity, and durability. The fitting and tube combination ensures proper sealing to achieve a zero dead volume connection, thus minimizing peak broadening and tailing. It withstands pressures up to 130 MPa without the use of tools.

Nexlock Features

Minimized dispersion

Conventional products

Connection ports vary in depth
Nexlock

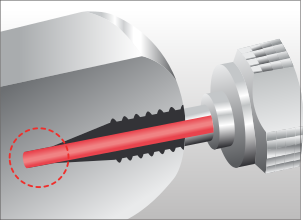

Nexlock ensures zero dead volume every time
Nexlock

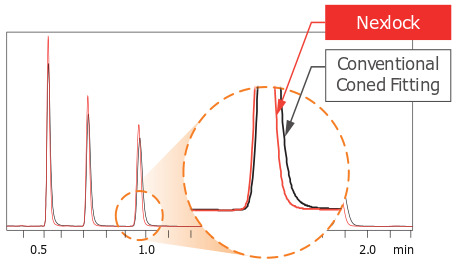

Nexlock improves peak shape

Reusable up to 100 times

- Tubes can be connected and disconnected 100 times

Compatible with UHPLC

- Working pressures up to 19.000 psi

Product Specification

Pressure capacity	130 MPa (~19.000 psi)
Fitting	Screw: No. 10-32 UNF Material: SUS316L, can be removed from tube
Wetted materials	Tube inner surface: SUS316L Tip: PEEK

Ordering Information

Desription	P/N	Tube Length (mm)	I.D. (mm)	Remarks
Tubing and fitting set	228-62544-14	200	100
	228-62544-12	300
	228-62544-11	600
	228-62544-13	800
	228-52597-48	800		with preheat block for CTO-30A
Tube only (for maintnenace)	228-62544-64	200
	228-62544-62	300
	228-62544-61	600
	228-62544-63	800
	228-52597-49	800		with preheat block for CTO-30A
Fitting only (for maintenance)	228-62544-90	-	-	can be used with all Nexlock tubing
